Bridge cranes are essential lifting equipment used across a variety of industries, from manufacturing to shipping, and are critical for handling heavy loads efficiently. Among the various types of bridge cranes, the 30-ton bridge crane is a popular model for medium to heavy-duty lifting applications. However, selecting the right girder design for a 30-ton bridge crane is a crucial factor in ensuring safety, efficiency, and longevity of the equipment.
This article will discuss the key considerations in choosing the right girder design for 30 ton bridge crane, covering factors like load-bearing capacity, crane span, duty cycle, and the types of girder options available. Whether you’re installing a bridge crane in a factory, warehouse, or shipyard, understanding the key features of girder design will help optimize crane performance and prevent costly downtimes.
1. Understanding the Role of Girders in Bridge Cranes
Girders are the horizontal support beams of a bridge crane that carry the load of the crane, hoist, and the lifted materials. They form the critical structural component of the crane’s overhead system, as they span across the entire width of the crane’s working area. Girders must be designed to withstand the combined forces of the crane’s lifting and moving operations.
For a 30-ton bridge crane, the girder design must account for the weight of the load being lifted, the dynamic forces caused by the crane’s operation, and the required operational environment. The two primary types of girders used in bridge cranes are the single girder and double girder designs, and each comes with its advantages and limitations.
2. Single Girder vs. Double Girder Crane Designs

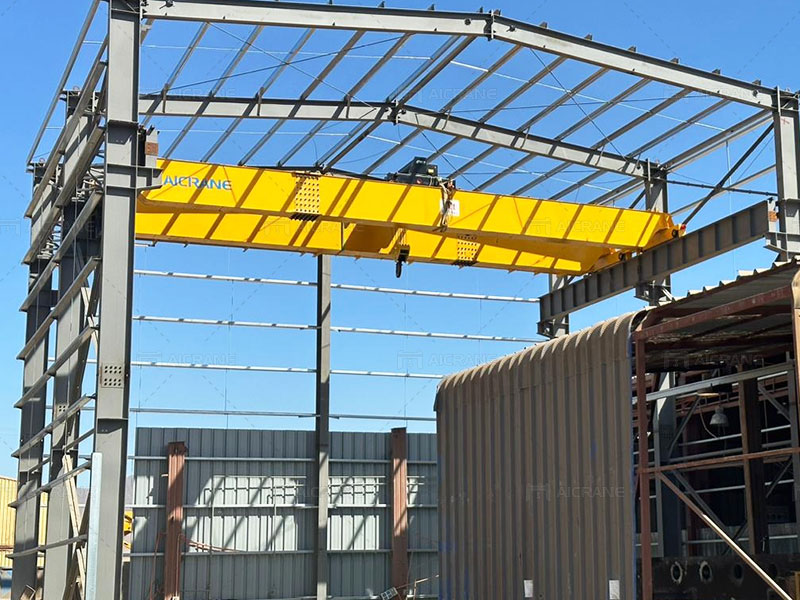

Single Girder Bridge Cranes
A single girder bridge crane uses one main girder that spans the width of the crane’s working area. This girder design is typically used in light to medium-duty applications, as it is less expensive and lighter than the double girder design.
For a 30-ton bridge crane, a single girder crane design can still provide sufficient strength for many applications, especially when the crane is used for lighter to moderate lifting tasks. Single girder cranes are ideal for operations with less frequent or less intense lifting cycles.
Advantages of Single Girder Design:
- Cost-effective: Single girder cranes typically cost less than double girder cranes due to their simpler design.
- Lower maintenance: Fewer components mean that maintenance can be easier and more affordable.
- More compact: Single girder cranes are more compact and have a lower profile, which can be beneficial in areas with height restrictions.
Limitations of Single Girder Design:
- Limited lifting height: The hoist has to be mounted directly under the girder, which reduces the lifting height compared to a double girder crane.
- Lower load capacity: While a 30-ton load is feasible for a single girder design, the crane will have limitations in terms of the span and frequency of operation.
- Limited travel speeds: Single girder cranes tend to have slower travel speeds compared to double girder designs, which could affect productivity in high-demand environments.

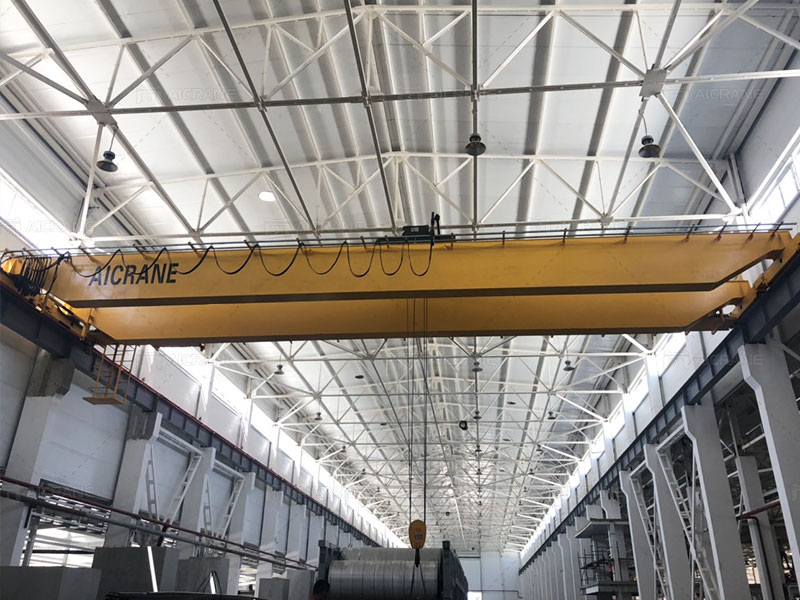

Double Girder Bridge Cranes
A double girder bridge crane uses two parallel girders for support, with the hoist traveling along a rail mounted on the girders. Double girder cranes are more robust and are designed for heavier lifting capacities and more demanding operations, making them a preferred option for 30-ton cranes in many industrial applications.
Advantages of Double Girder Design:
- Higher lifting height: The hoist can be positioned between the two girders, increasing the available lifting height.
- Greater load capacity: Double girder designs provide better load distribution, enabling the crane to handle heavier loads with more stability.
- Higher operational speed: Double girder cranes typically have higher travel and lifting speeds, improving efficiency in high-demand environments.
- More suitable for complex applications: If your crane needs to handle complex or frequent operations with precise load movements, the double girder design provides the necessary strength and versatility.
Limitations of Double Girder Design:
- Higher cost: Double girder cranes are more expensive than single girder designs due to the extra materials and components involved.
- More complex maintenance: While the double girder system offers enhanced performance, it requires more attention in terms of maintenance and repair.
3. Key Factors in Selecting the Right Girder Design
3.1 Load Capacity and Safety
For a 30-ton bridge crane, ensuring that the girder design can accommodate the required load capacity is critical. A girder design that doesn’t provide adequate support for the load can result in structural failure or safety risks.
Double girder designs are often more appropriate for higher load capacities, providing better distribution of the weight across the entire system. When selecting a girder design, it’s important to factor in not just the static load but also the dynamic load from the crane’s motion. Dynamic loading, including acceleration, deceleration, and lifting impacts, can increase the stresses on the girder and affect its lifespan.
Recommendation: If the crane will be used in high-stress operations or will handle the full 30-ton load regularly, a double girder design is often a safer and more durable choice.
3.2 Span and Lifting Height
The span (the width between the crane rails) and the lifting height play a significant role in determining the girder design. A wider span typically requires a more robust girder design to support the load across a larger distance. Additionally, a higher lifting height requires a crane system that can provide ample space between the girders to accommodate the hoist, while still maintaining the necessary structural integrity.
A single girder design may be suitable for short spans (typically under 20 meters), while longer spans may require a double girder design. For a 30-ton crane, spans over 20 meters are better suited to the double girder design.
3.3 Duty Cycle
The duty cycle refers to how frequently the crane will be used and how intense the lifting operations will be. If the crane will operate frequently or continuously in a high-demand environment, a double girder design will provide better durability and efficiency.
Single girder designs may be appropriate for light-duty applications where the crane is used intermittently and for lighter loads. However, for medium-to-heavy-duty operations with frequent lifting cycles, the added durability of a double girder crane will offer better long-term performance.
4. Material Selection for Girders
When choosing the girder design for a bridge crane for sale, the material selection is another crucial factor. Steel is the most common material used for crane girders due to its strength, cost-effectiveness, and availability. However, the type of steel used (such as carbon steel, alloy steel, or high-strength steel) can influence the girder’s load-bearing capacity and overall durability.
For cranes subjected to harsh environments (such as corrosive or high-temperature settings), corrosion-resistant materials or coatings may be necessary to extend the life of the crane.
5. Integration with Crane System Components
Finally, it’s important to consider how the girder design will integrate with the other crane components, such as the hoist, trolley, and end trucks. A well-designed girder should allow for smooth and efficient movement of the hoist along the crane’s span and accommodate the necessary rails and mounting fixtures.
For a 30-ton bridge crane, choosing a compatible design that works well with the hoist system can reduce friction, improve operational speed, and minimize wear and tear on the components. Additionally, proper integration can ensure that the crane performs efficiently and safely, with fewer operational disruptions.
Conclusion
Selecting the right girder design for a 30-ton bridge crane is a complex decision that should be based on the crane’s load capacity, span, duty cycle, and operational requirements. While single girder cranes offer cost-effective solutions for light to medium-duty operations, double girder cranes are better suited for higher loads, larger spans, and more demanding operational conditions. Ultimately, choosing the right girder design is essential for maximizing safety, performance, and long-term reliability in any lifting application.
By carefully considering factors like load distribution, lifting height, and operational requirements, you can ensure that the crane will provide optimal performance and meet the needs of your specific business or industrial operation.
